05-06 RSX Depo Projector Headlights With 55W HID Kit
Depo projector conversion headlights with VVME 55W slim ballast 4300K HIDs on both low and high beams.
The Depo headlights only have up/down without any side-to-side beam adjustment.
OEM headlights use H1 low beam (H4 style connector) and 9005 high beam bulbs. The Depo headlights convert the low beam H1 and high beam 9005 bulbs to dual H7 bulbs with the integrated adapter harnesses.
In order to prevent modifying the headlight housing and/or seals, the included adapter harness was converted to carry the high voltage supply of the HID bulbs by making harness adapters.

Supplies used:
2x H7 HID conversion kits (4x ballasts and 4x H7 HID bulbs)
2x H4 male-female extensions
2x 9005 male-female extensions
4x AMP connector extensions
Solder, soldering iron, heat shrink tube

Out of the box, the plug-and-play halogen bulb configuration would follow for each of the bulbs (for H4-style low beam and 9005 high beam):
chassis female -> male to H7 female adapter (integrated to headlight) -> male halogen bulb.

Three adapter for each side had to be made. Adapters bolded.
Low Beam (H1, H4 connector):
[low voltage chassis H4 female -> H4 male to 9005-style female -> 9005-style male on HID ballast input low voltage] -> [high voltage AMP connectors on HID ballast output -> AMP connectors to H4 female -> H4 male to H7 female (integrated to headlight) -> H7 male to AMP connectors -> AMP connectors on HID bulb high voltage]

High Beam (9005):
[low voltage chassis 9005 female -> 9005 male to 9005-style female -> 9005-style male on HID ballast input low voltage] -> [high voltage AMP connectors on HID ballast output -> AMP connectors to 9005 female -> 9005 male to H7 female (integrated to headlight) -> H7 male to AMP connectors -> AMP connectors on HID bulb high voltage]

Exterior Pictures. Low beam projector. Reflectors with signal on top and high beam with parking light on the bottom.


Rear

Adapter harnesses for low beam, high beam, and parking light/marker. The OEM low beam connector uses an H4 style connector

Rear bulb wiring

Included low beam H7 bulb


Included high beam H7 and parking light bulbs


Adapter harness

VVME 55W HID kit

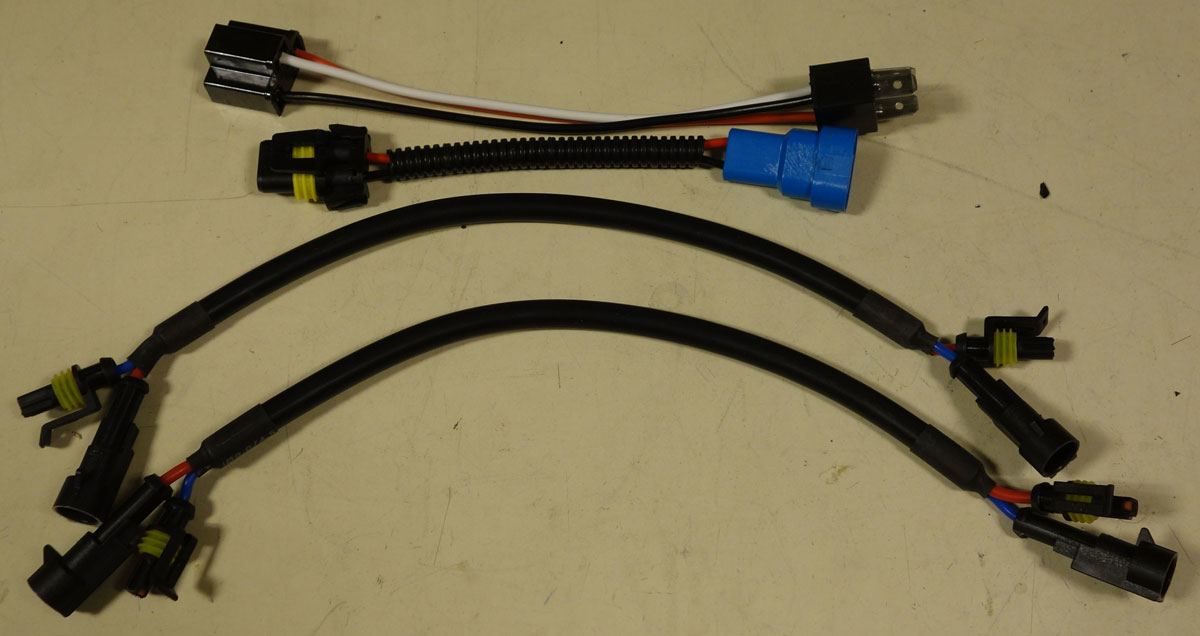

Wiring needed for the high voltage side


Removed grommet from HID wiring

Building the high voltage AMP to H7 adapters

Building the high voltage AMP to 9005 adapter. Use a small flathead to undo the retaining clip inside the connector

Building the high voltage AMP to H4 adapter. Use a small flathead to undo the retaining clip inside the connector

Plugging all the high voltage wires together. Use dielectric grease to prevent arcing on all connectors, particularly the high voltage side

Building the low voltage 9005 to 9005 and H4 to 9005 adapters. Use a small flathead to undo the retaining clip inside the connector

Used the included brackets/screws to stack ballasts. Added a little gap so they don't cook each other

Headlights mounted

Low beam warming up

Headlights installed



Low beam pattern

High beam pattern
