Mustang Front sway bar widths

Stolen from

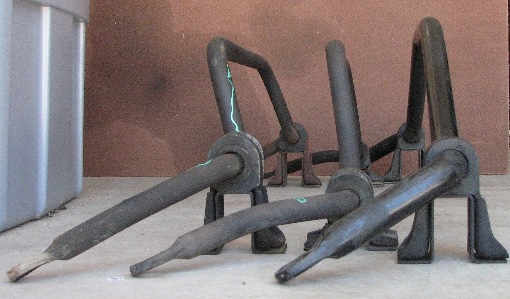

The early fox bars will not fit the SN95. The widths work out ok, but the front fox sway bar mounts are narrower. I don't know if it will be of any use to anyone, but I measured eye to eye on all three bars. From top to bottom in the photo:
'85 LTD 42"
'87 5.0 41-5/8"
'95 GT 43-7/8"

height from mount to center of bar from left to right:
'85 LTD 9"
'87 5.0 8-3/4"
'95 GT 10-3/8"
